3D rendering Adelaide for luxury residential projects

Luxury residential projects in Adelaide settle their most important decisions before construction begins. Architects, builders and homeowners approve layouts, façade direction, materials and lighting while the home still exists only as drawings, schedules and technical documents. Those documents are precise, but they are hard for every stakeholder to read as a finished home, and the gap between what is approved on paper and what is experienced on site is where cost and rework tend to appear.

3D rendering Adelaide services turn that technical information into a clear visual outcome the whole project team can understand and act on. Adelaide sets a particular problem for a render: Much of its best residential work involves stone, either retained on a heritage frontage or specified new, and stone is the single hardest material to represent honestly. This article covers rendering local stone, working within the Planning and Design Code overlays, and what an Adelaide project should supply to get a result it can rely on.

Learn more: architectural visualisation Melbourne for project decisions

What you get from a 3D rendering Adelaide package

A render package is a defined list of outputs, not an open-ended image service. For a South Australian residential project it normally comprises exterior and streetscape views, interiors of the principal rooms, material and lighting studies, and the source files, revision rounds and usage rights attached to them. Each output should answer a decision someone signs off.

Deliverable	The decision it resolves	Stage
Exterior and streetscape views	Does the built form read correctly from the public realm?	Concept to consent, LOD 200 to 300
Interiors of the principal rooms	Do volume, proportion and circulation work?	Design development
Material and finish studies	Do selections read as intended at full scale?	Before procurement, LOD 350
Lighting studies, natural and artificial	How do rooms behave under Adelaide light?	Design development
Animation or flythrough	Arrival and circulation, where a still cannot carry it	Pre-construction
VR immersive review	Are finish combinations approved before ordering?	Before procurement
4D sequence linked to the programme	Can it be built in the order the programme assumes?	Pre-construction, LOD 350 to 500
Source files, revisions, usage rights	What you own, how many rounds, what is excluded	Agreed at scope

Key insight: The test of a render is not whether it looks finished, but whether someone could reject an option on the strength of it. If two mortar colours cannot be told apart in the image, it is a presentation asset, not a review tool. Write this list before you request pricing: Scope written against confirmed views, rounds and formats is comparable between providers, and “a few renders” is not.

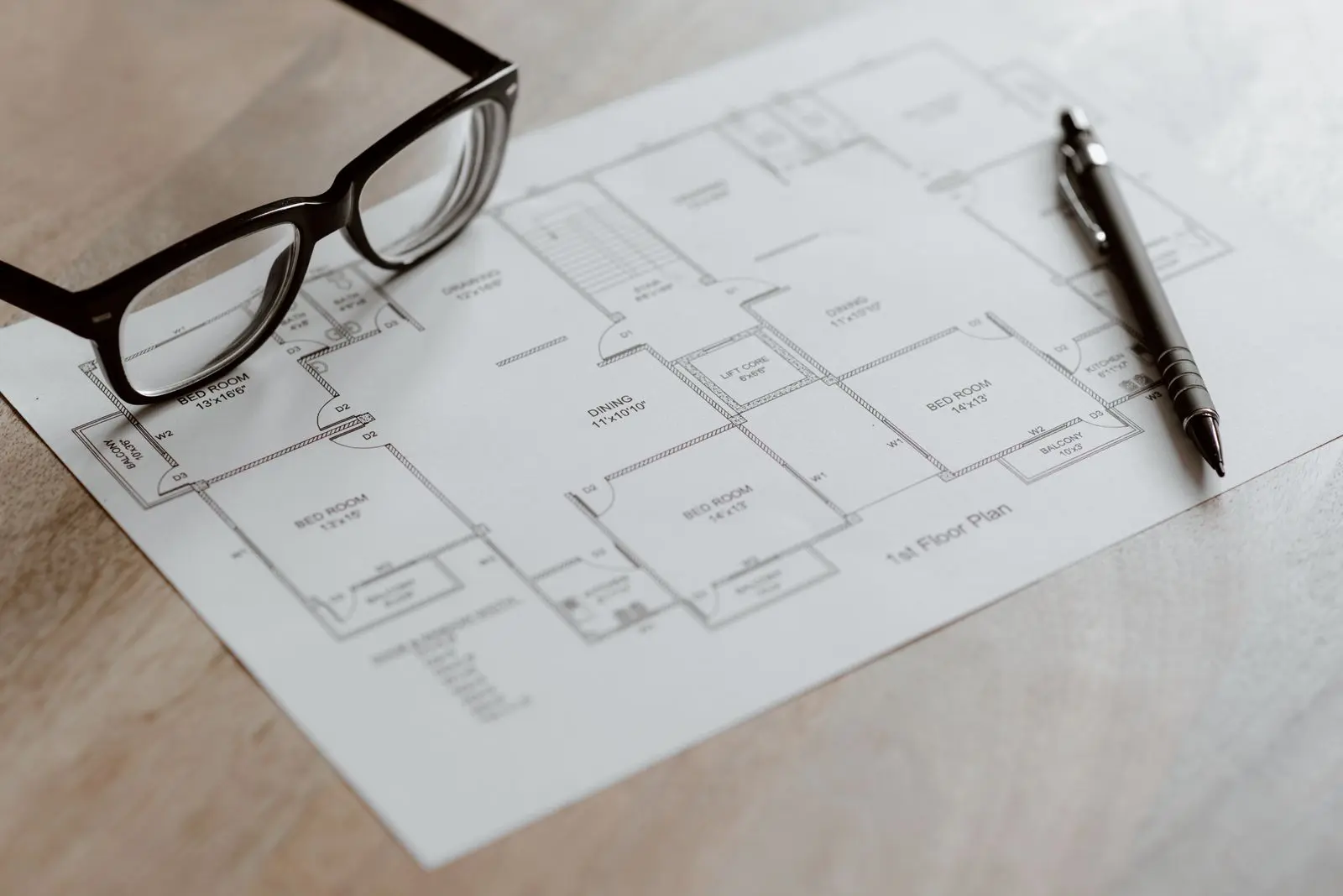

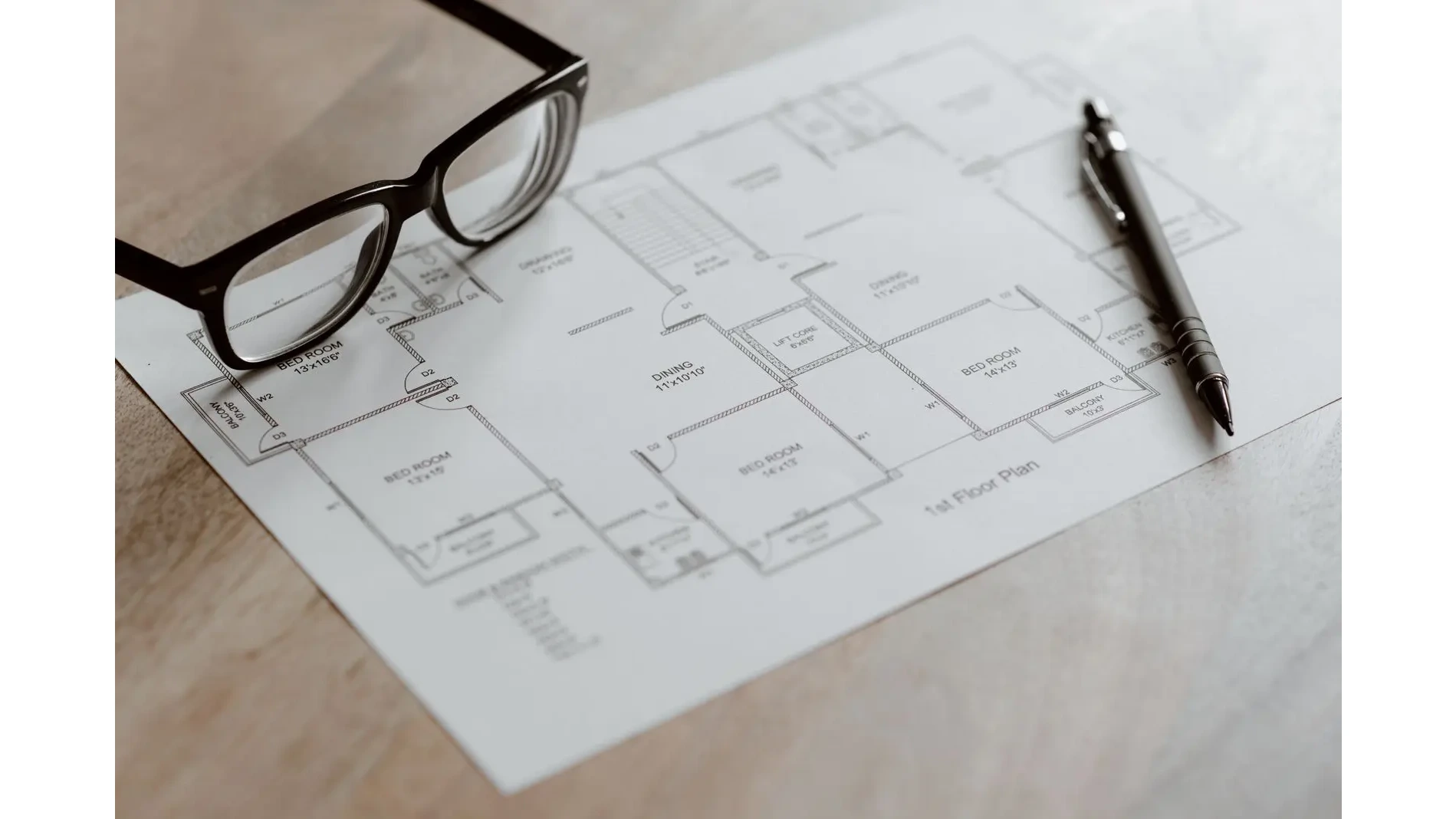

3D rendering Adelaide used to review room sizes and relationships.

Why stone makes Adelaide a harder rendering problem

Adelaide’s residential character is built on stone. Bluestone, freestone and brick villas and cottages define its historic streets, and contemporary work in the inner suburbs is very often an addition behind one of them, or a new house expected to sit respectfully among them.

Stone is where renders most commonly mislead, and it does so in a specific way.

• Stone is geological, so it does not repeat: Every face is different. A render using a tiled texture produces a visible pattern across a large wall that no real wall would ever show, and the eye detects it immediately.
• Colour range within one stone is wide: Bluestone in particular varies substantially between pieces and between quarries. A render showing a uniform colour is showing something that does not exist.
• The mortar joint does as much visual work as the stone: Joint width, colour and whether it is raked, flush or struck changes the reading of an entire elevation. It is routinely ignored in renders and routinely argued about on site.
• Coursing and stone size set the scale: Random rubble, squared coursing and ashlar produce completely different buildings from the same material.
• Stone changes with moisture and light: It darkens when wet and reads very differently in raking morning light than at midday, which is why a single render is a poor basis for a stone decision.

Key insight: When a project involves stone, ask how it is being represented before you accept the render. The answer should involve real variation across faces and a specified mortar treatment, not a single repeated texture. If the render cannot show the difference between two mortar colours, it cannot help you choose one.

What this means for your decision: Confirm quarry, stone type, size, coursing and mortar with your builder and stonemason, and use the render to test how the combination reads across the whole elevation at more than one time of day. Physical samples remain essential for stone, more than for any other material.

Matching new work to a heritage or character frontage

South Australia’s planning system runs on the Planning and Design Code, administered through the PlanSA ePlanning portal, and several overlays affect what can be done to a period property.

• State Heritage Places and State Heritage Area overlays: Identify state-listed places and areas in the Code.
• Historic Area Overlay: Protects places contributing to the historic value of a neighbourhood, supported by Historic Area Statements setting out the attributes of importance.
• Character Area Overlay: Seeks to protect character streetscapes, supported by Character Area Statements describing what should be protected and complemented by new development.

Overlays are property specific and provisions are updated over time. Confirm what applies to your site through PlanSA and with a planning professional.

The design consequence is that the most examined view in an Adelaide project is usually a single one: The junction where the retained frontage meets the new work behind it, seen from the street.

• Roof form at the junction: How the new roof meets the old, and whether it is visible above the retained parapet or ridge from the footpath.
• Setback of the addition: Whether the new work reads as subordinate from the street or competes with the frontage.
• Material relationship: Whether new material contrasts deliberately or attempts to match, and whether an attempted match will actually succeed.
• The streetscape view, not the site view: Assessment considers the contribution to the street, so the render should be taken from where a person would stand.

What this means for your decision: Ask for the street elevation view early, at eye height from the opposite footpath, with the neighbouring properties modelled. It is the view that determines the outcome, and it is cheap to test before lodgement and expensive to argue afterwards.

Adelaide light and the dry climate

Adelaide has a Mediterranean climate with hot dry summers and mild wet winters, and the light is clear and strong.

• Western sun is the pressure point: Late summer afternoons are intense, and shading geometry does the work that glazing performance alone cannot.
• Clear light exposes finish sheen: Pale, high-gloss surfaces produce glare indoors that a showroom cannot demonstrate.
• Stone and masonry hold heat: Thermal mass is an asset when it is shaded and paired with night ventilation, and a liability when it is exposed to afternoon sun.
• Landscape reads differently in a dry climate: Renders populated with lush temperate planting misrepresent both the appearance and the water demand of a realistic Adelaide garden.

What this means for your decision: Ask for a late summer afternoon view of the western elevation and a matching interior view, and ask that the landscape shown is planting the project actually intends to use.

How the render package is sequenced against the build programme

Renders are not one deliverable at the end of design. The package is sequenced against the project programme so each output lands before the decision it supports, and tracked plan versus actual so a late visual never becomes the reason a lodgement or procurement date slips. That sequencing is project planning work, and it separates a render service from a project control input.

• Master plan programme: The high-level sequence across design, consent, procurement and construction. Render milestones sit against it, so the streetscape view exists before lodgement and the material study before ordering.
• Programme of works: The detailed activity structure trades and suppliers are held to. Long-lead items, particularly stone, joinery and glazing, set when each review has to happen.
• Written methodology, Gantt chart and resource-loaded histogram: The sequence in words, as logic, and as demand over time, which is where unachievable review windows become obvious.
• Plan-versus-actual status updates: Each render milestone reported against its baseline date, so variance is visible while there is still time to respond rather than at handover.
• 4D where the sequence itself is the question: Model elements bound to programme activities and played back. On constrained inner-Adelaide sites with a narrow frontage or a retained façade, crane position, scaffold and delivery access are programme items before they are logistics items.

Decisions resolved before tender or procurement cost nothing; the same change during construction is priced at the builder’s margin, without competitive leverage. Sequencing the package against the programme is how that principle becomes operational, a discipline set out further in how 3D rendering Melbourne improves pre-construction planning.

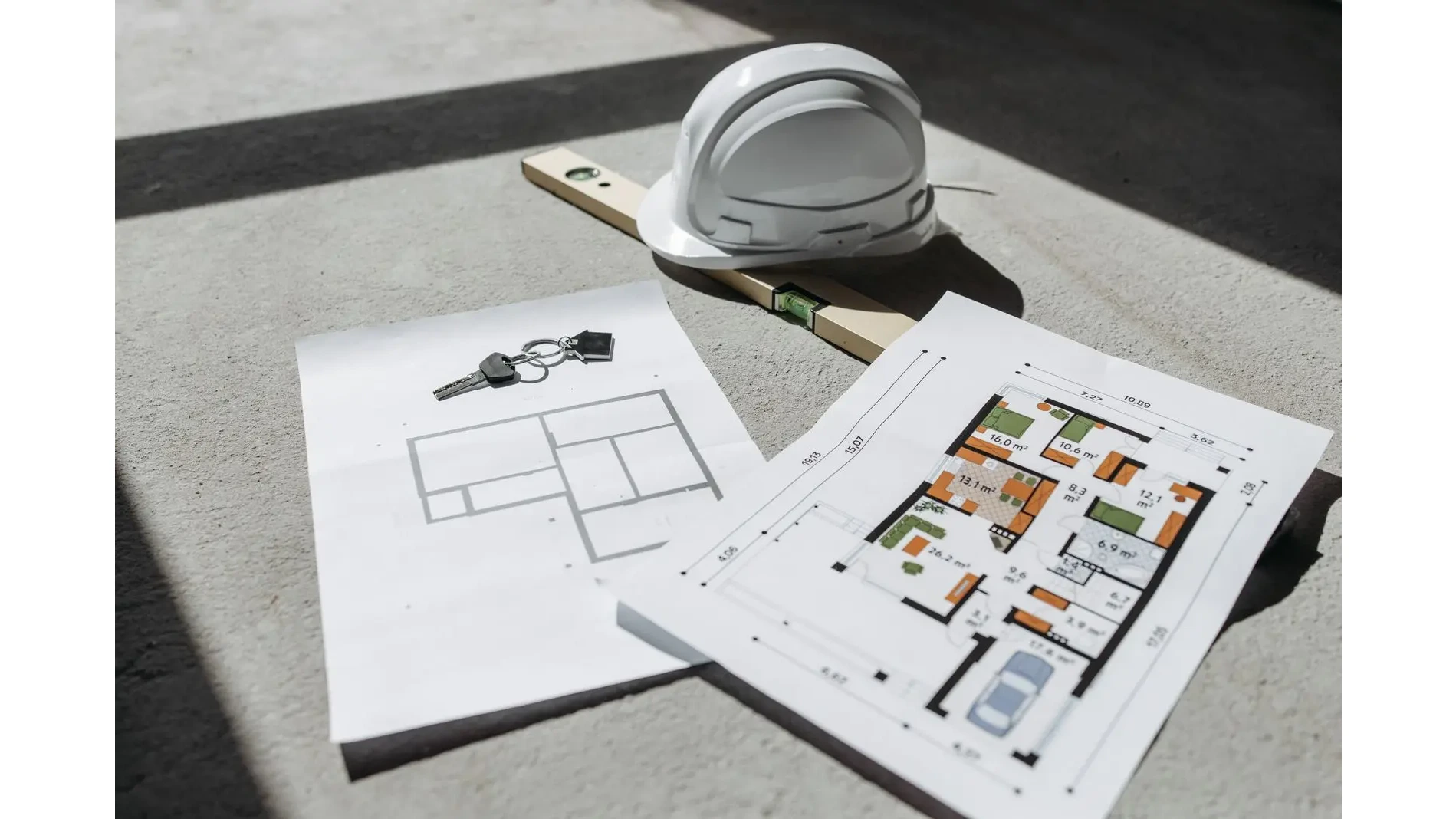

Drawings, schedules and site information assembled before an Adelaide rendering project starts.

What you supply

• Current drawings, CAD or BIM model: With the issue date confirmed, so nobody reviews a superseded version.
• Site and survey information: Boundaries, levels, orientation and neighbouring built form, which makes a streetscape view defensible rather than indicative.
• Planning context: The overlays confirmed through PlanSA, so the right views are produced for the right assessment.
• Material and finishes schedule: Confirmed selections, with provisional items flagged and supplier references.
• The construction programme: The master plan programme or programme of works in a linkable format, if sequencing is in scope.
• Decision list and review dates: Which decisions each output has to close, and who signs them off.

What this means for your decision: Ask your builder for the programme in a linkable form at contract stage, not after mobilisation. A programme that cannot be linked usually cannot be tracked.

>>> Learn more about how to choose custom home builders in South Australia

Who this is for

3D renders Adelaide work is commissioned by four groups, each buying something different. Which one you are determines what belongs in the package, which view matters most, and when in the programme the work happens.

• Architects and interior designers: To protect design intent and test proportion, materiality and light before documentation is fixed. The output that earns its keep is the material study, not the hero image.
• Custom builders: To remove ambiguity from scope and pricing and reduce variation risk after contract. The output that earns its keep is the coordinated model view tied to the programme of works.
• Developers and small-scale infill projects in SA: To support lodgement under the applicable overlays and present a scheme accurately to buyers and financiers. The output that earns its keep is the streetscape view built on a real site model.
• Homeowners in South Australia: To understand the home before committing. The output that earns its keep is the interior view under realistic light, plus VR review before finishes are ordered.

>>> Learn more about the best home builders Adelaide

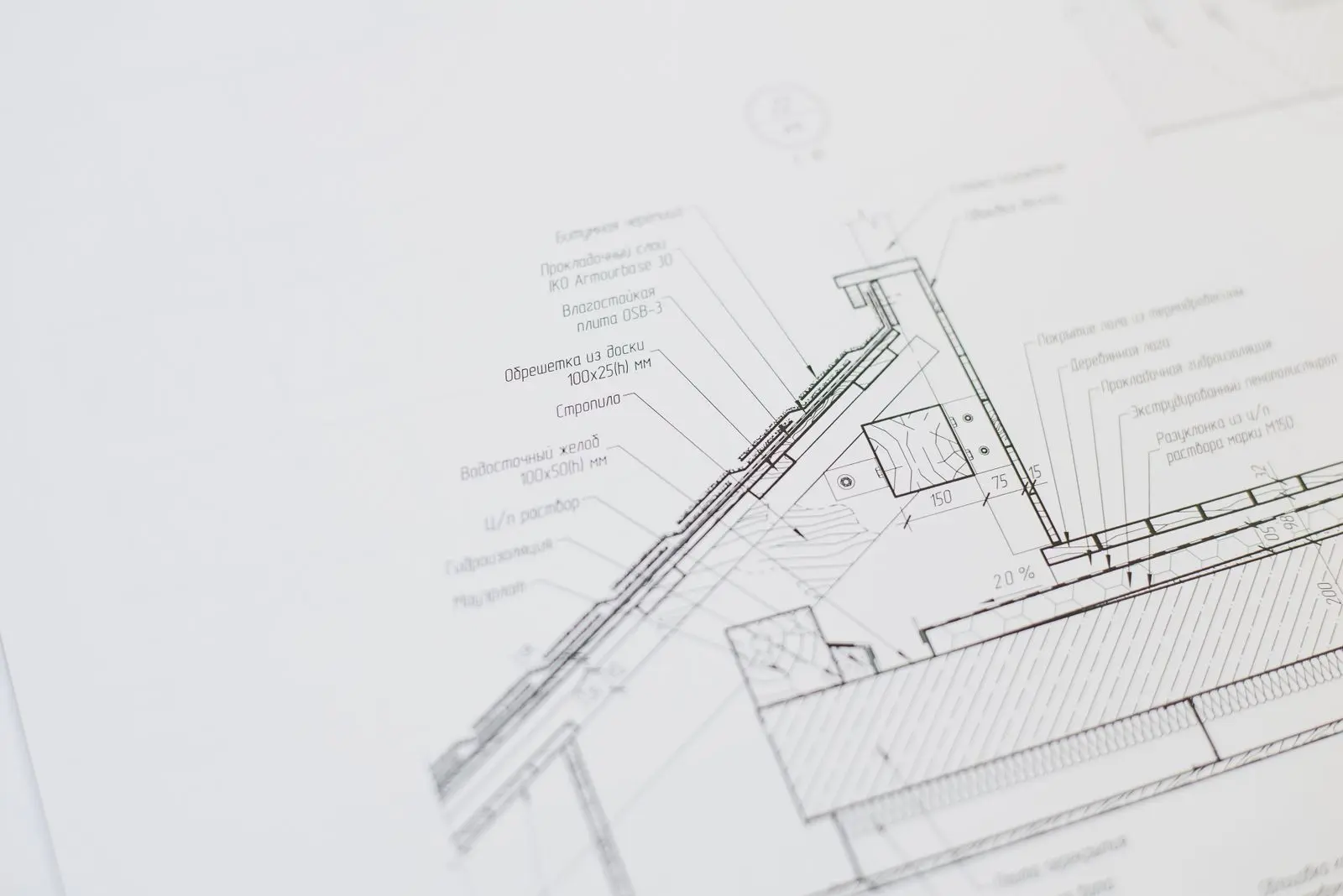

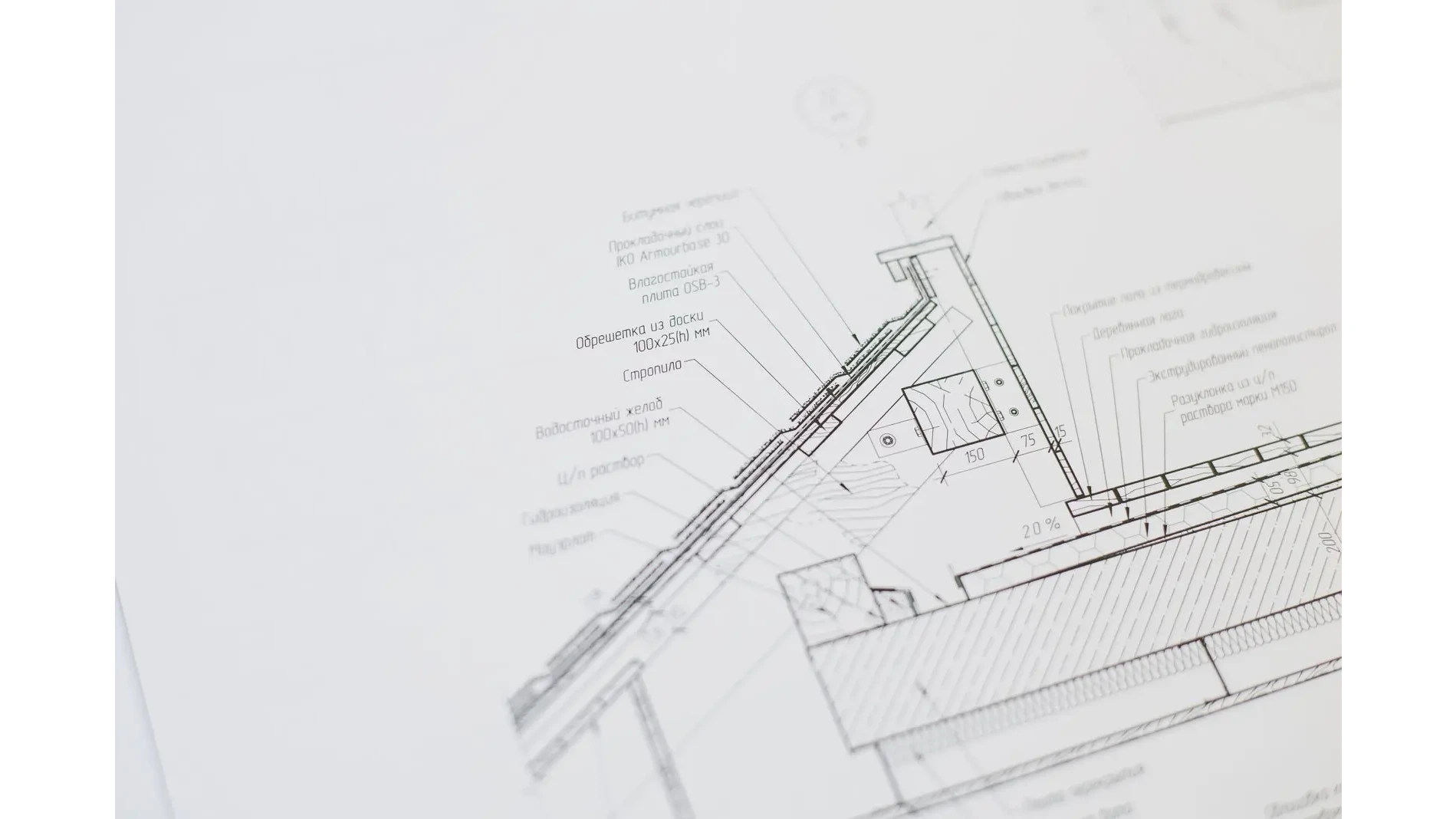

3D rendering Adelaide checking circulation between rooms on plan.

How DX Living supports Adelaide projects

DX Living is a project control specialist firm combining project planning with visualisation to de-risk projects before construction. On a South Australian residential project that means streetscape and context views built on real survey data, stone and finish studies carrying genuine variation across faces, materials reviewed and approved in VR before ordering through DX Studio, and the render package sequenced against the master plan programme with plan-versus-actual status updates. BIM is how the two sides connect: One coordinated model serving both the visual review and the programme.

Material handling is the capability an Adelaide stone project should test for, and Project 251 in Edithvale, Victoria is where it is demonstrated: 4D sequencing and a VR flythrough on a home built around sculpted stone, natural stone surfaces and a concrete-textured water feature. It is a capability example only. Project 251 is a Victorian project, it does not represent Adelaide delivery experience, and no Adelaide-specific claim is made on the basis of it.

DX Living is not an architecture practice, a builder or a project management firm. Drawings, engineering documentation, specifications and formal approvals remain with the appointed consultants and must be verified independently. See the DX Living project collection, the same discipline applied in architectural visualisation Melbourne for project decisions, or contact the team.

Conclusion

Luxury residential projects reward clarity before construction. 3D rendering in Adelaide delivers it when the package is scoped as a defined list of outputs, built on current documentation and real survey data, and sequenced against the programme so each view arrives before the decision it supports. Handled that way, 3D architectural rendering in Adelaide is a control mechanism rather than a presentation afterthought, giving architects, builders, developers and homeowners the same accurate view of the same home while changing their minds still costs nothing.

Ready to plan your Adelaide project with visual certainty? Contact DX Living to discuss an Adelaide project.

FAQs

Q: What is included in a 3D rendering Adelaide package?

A: A defined list of outputs agreed before production: Exterior and streetscape views, interiors of the principal rooms, material and lighting studies, and optionally animation, VR review or a 4D sequence linked to the programme. The scope should also state revision rounds, file formats, usage rights and exclusions, so a 3D rendering Adelaide engagement can be compared like for like.

Q: How long do 3D renders Adelaide take?

A: Turnaround is driven by model maturity and input quality, not the number of images. Where a current BIM or CAD model, a site survey and a confirmed finishes schedule exist, most of the elapsed time is review rounds. Where geometry must be rebuilt from PDF drawings, or selections are provisional, that rework sets the schedule. Agree milestone dates against the project programme rather than a flat turnaround.

Q: What do I need to supply to get started?

A: Current drawings, CAD or BIM model with the issue date confirmed; site and survey information including neighbouring built form; the overlays that apply, confirmed through PlanSA; a finishes schedule with provisional items flagged; the construction programme in a linkable format if sequencing is in scope; and the decisions each output has to close.

Q: What drives the cost of 3D architectural rendering Adelaide work?

A: The main drivers are the number and type of views, the level of detail the model carries (LOD 200 for massing behaves very differently from LOD 350 for procurement), whether usable geometry exists or must be rebuilt, how much surrounding streetscape is modelled, the number of revision rounds, and whether animation, VR or 4D is included. Highly variable materials such as natural stone add work, because they cannot be handled with a repeating texture. For indicative market ranges, see 3D rendering cost in Australia.

Q: Can renders be used as evidence for a Planning and Design Code application?

A: Renders support an application; they do not replace the documentation it is assessed on. Where a Historic Area Overlay, Character Area Overlay or State Heritage overlay applies, a street elevation from the opposite footpath on a real site survey, with neighbours modelled, addresses what the assessment considers. Confirm the applicable overlays and required lodgement documents through PlanSA and with a planning professional.

Q: Can a render show bluestone or local stone accurately?

A: Only if it is built to. Stone varies piece by piece, so a render using a single repeated texture produces a visible pattern that no real wall shows. Ask how variation across faces is handled and confirm the mortar joint width and colour are modelled, since the joint does as much visual work as the stone. Physical samples remain essential.

Q: Which view matters most on a heritage or character frontage?

A: The street elevation at eye height from the opposite footpath, with neighbouring properties modelled, showing where the retained frontage meets the new work behind it. Assessment considers the contribution to the streetscape, so that is the view that decides the outcome.

References

• Government of South Australia. PlanSA, planning and development.
• Government of South Australia. PlanSA, heritage and character.
• Government of South Australia. Guide to the Planning and Design Code.
• Australian Building Codes Board. National Construction Code 2022, Volume Two.
• Nationwide House Energy Rating Scheme (NatHERS). Whole of home and star ratings.
• Australian Government. Your Home, thermal mass and passive design.
• City of Adelaide. Planning and building.
• ISO 19650-1:2018. Organisation and digitisation of information about buildings and civil engineering works, information management using BIM. Part 1: concepts and principles.
